Description

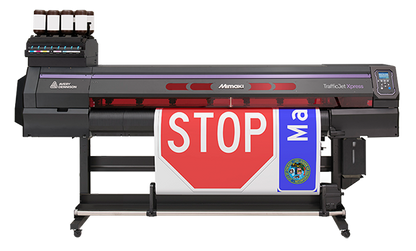

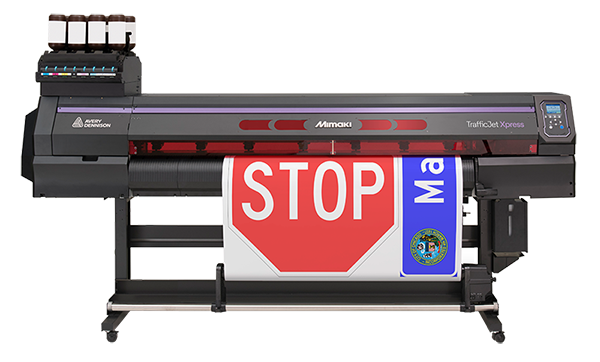

TrafficJet™ Xpress – Simple, clean and cost-effective. Warranted durability
TrafficJet Xpress is built on the proven Mimaki UCJV-300 platform utilizing UV-LED ink technology. With faster start-up and no drying time, this printer is ideal for an entry-level to intermediate-sized sign shop. This is our easiest printer to use and, for most sign shops, the most productive in its class. True Traffic Color™ spot inks and included software simplify the process of producing specification-compliant traffic control, wayfinding, and custom signage.
Signs printed on the TrafficJet Xpress carry longer warranties than signs produced by screen printing and colored overlay films. When using our standard OL-1000 Anti-Graffiti protective digital overlay:
- 15 years on OmniCube™ traffic sign colors
- 12 years on HIP traffic sign colors using
- Up to 10 years on custom ink colors
Engineered to meet your sign fabrication needs
- MUTCD compliant signage
- Easy, efficient sign fabrication
- Improved labor and material efficiency – no cutting, premasking or weeding
- Quick order turnaround – direct to print from design
- Lower operating costs – produce just in time instead of just in case
- Print unattended and manage multiple printers with a single operator
- Print signs in any orientation on our omni-directional sheeting, maximizing space while optimizing retroreflectivity.
- All permanent signs are graffiti cleanable with the use of standard OL-1000 UV protective overlay
- Ideal for multi-color signs and complex street name signs with variable information
Specifications
| Print head | Drop-on demand, piezo drive method |
| Print resolution | 300 dpi, 600 dpi, 900 dpi, 1200 dpi |
| Maximum print speed | 277.7 sf/hr (25.8 sqm/hr) |
| Typical traffic sign resolution | 300x900 dpi |
| Traffic sign print speed | Up to 108 sf/hr (10 sqm/hr) |
| Ink type | TrafficJet™ True Traffic Color UV-LED inks |
| Color configuration | True Traffic Color™ spot inks (CMYKRG) |
| Maximum media width | 63.8" (160 cm) |
| Maximum media thickness | up to 0.04" (1 mm) |
| Maximum roll weight | 88 lbs (40 kg) |
| Interface | Ethernet, USB |
| Power supply | Voltage: AC 100V~240V x2 |
| Power consumption | AC100V: 1.44kW / AC200V: 1.92 kW |
| Take-up system | Standard |
| Software | FlexiPRINT Avery Dennison Edition |
| Operating temperature | 68°F–86°F |
| Operating humidity range | 35%–65% |
| Dimensions ( W x D x H) | 114.2" (290 cm) × 30.6" (77.6 cm) × 58.1" (147.5 cm) |
| Weight (printer) | 414.5 lbs (188 kg) |
| Dimensions (shipping info) | 130.5" (332 cm) x 30.6" (77.6 cm) x 58.1" (147.5 cm) |
| Weight (shipping info) | 558 lbs (253 kg) |
| Limited warranty | 1 year |
